Description

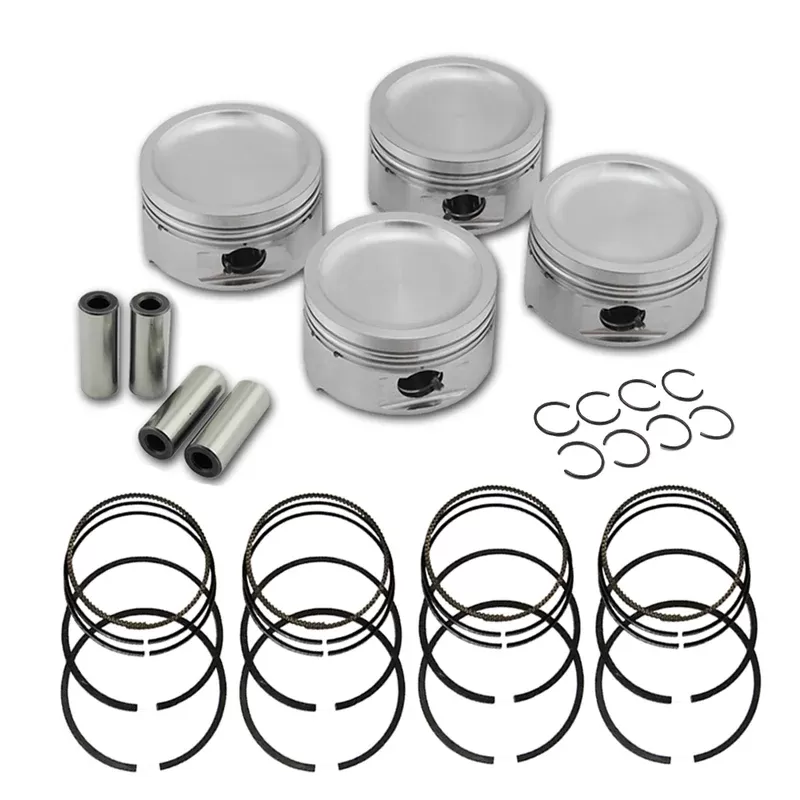

For VW 827 1.8 8V engineswon’t fit ABA, AGG, or other tall blocks. Nominal bore diameter: 82mm (increase engine displacement to 1825cc)Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mmCompression height: 32.40mm.Dish volume: 17.3ccCompression ratio: 8.7:1Pin offset: 1.10mm.Material: Forged aluminum 4032 T6.Average piston weight (unit, without pin): 308,59g (10.88 oz).Rated for 1000hp.Innovative high performance piston skirt design that provides:1. Smaller piston to bore clearance2. Less noise3. Better ring seal4. Higher power5. DurabilityFeatures:Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.Pin oil lubrication by broaches and oiler to reduce friction and increase durability.Super A Piston Pin for VW827 (63.45mm) – 4pcs setFor VW 827 engines (Super A pistons)Dimensions: 63.45mm x 20mm (length x O.D.)Average unit weight: 116g (4.09 oz)Rated for 1.000hpMade from special steel alloys that combines optimal mass with high resistance.Piston rings 82mm setContains 01 complete set for 4 cylinder engine. Compatible with SPA Super A, with 1.5mm / 1.5mm and 2mm channels. Ring thickness: 1st ring 1.5mm – Made of carbon steel, which is 35% more resistant than cast iron and on average 30% lighter. With DLC (Diamond-Like Carbon) treatment, which is the application of carbon particles, whose physical and chemical properties are very close to those of the diamond, providing greater resistance to the material and reducing the friction of the surface, which significantly reduces friction when working against other surfaces. 2nd ring 1.5mm – Made of cast iron. 3rd ring 2.0mm – Manufactured in 3 pieces, which guarantees easy maintenance, better stability in the control of the oil film and improves the oil removal through the piston lubrication holes, as it has a better area for displacing this oil.
