Description

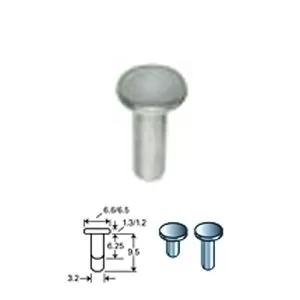

DESCRIPTION Mini pin stubs are ideal for small samples or parts which need to be examined individually. Takes less space with a head diameter of 6.5mm, small samples are easier to locate and it is a low cost alternative for the standard 12.7mm pin stub. Available with the standard 3.2mm pin in two lengths: most common 9.5mm length for many SEM’s and shorter 6.25mm for ZEISS/LEO SEM’s. This mini pin stub is available in three materials: Aluminum – for standard imaging applications

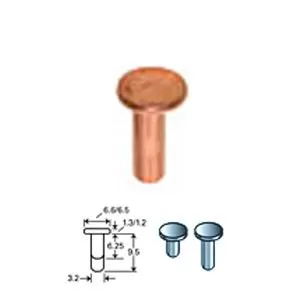

Copper – for Cryo and heating stage applications

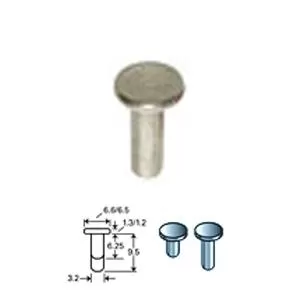

Stainless Steel (18-8) – as a non-corrosive and cleaner alternative for environmental SEM’s and FESEM 16180 – Aluminum Mini Pin Stub with 9.5mm pin for FEI, Tescan, Zeiss (also for Philips, Leo, Cambridge, AMRAY, Leica, CamScan, ETEC), Head 6.6 x 1.3mm, pkg/100 16181 – Aluminum Mini Pin Stub for ZEISS/LEO with 6.25mm, shorter pin, Head 6.6 x 1.3mm , pkg/100 16184 – Copper Mini Pin Stub with 9.5mm pin for FEI, Tescan, Zeiss (also for Philips, Leo, Cambridge, AMRAY, Leica, CamScan, ETEC), Head 6.5 x 1.2mm, pkg/100 16185 – Copper Mini Pin Stub for ZEISS/LEO with 6.25mm, shorter pin, Head 6.6 x 1.2mm, pkg/100 16188 – Stainless Steel Mini Pin Stub with 9.5mm pin for FEI, Tescan, Zeiss (also for Philips, Leo, Cambridge, AMRAY, Leica, CamScan, ETEC), Head 6.6 x 1.2mm, pkg/100 16189 – Stainless Steel Mini Pin Stub for ZEISS/LEO with 6.25mm, shorter pin, Head 6.6 x 1.2mm , pkg/100
