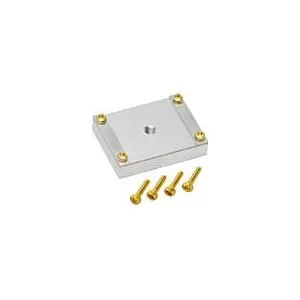

DESCRIPTION Interchangeable Modular SEM Specimen Holders This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed. Medium PELCO SEMClamp™ 25 x 15mm, M4 PELCO SEMClamp™ holder 25mm (1″) long with 15mm (0.6″) wide clamping area. Convenient holder for clamping down samples up to a thickness of 7mm under the clamping strips. Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397). Overall dimensions 33 x 25 x 9mm (1.3″ x 1″ x 0.35″). Material: machined aluminum with brass screws. Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan heads scew, brass.
