Description

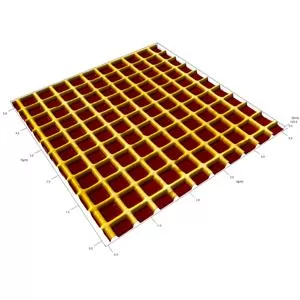

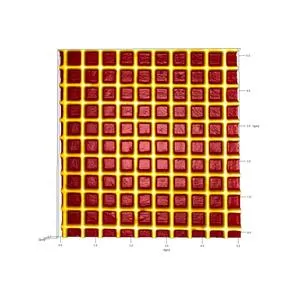

DESCRIPTION 677-AFM X-Y Cross Line Grating Replica, 2000 lines/mm, Cellulose Acetate, mounted on 12mm AFM/STM Specimen Disc 677-AFM-10 X-Y Cross Line Grating Replica, 2000 lines/mm, Cellulose Acetate, mounted on 10mm AFM/STM Specimen Disc 677-STM X-Y Cross Line Grating Replica, 2000 lines/mm, Carbon/Au/Pd Coated, mounted on 12mm AFM/STM Specimen Disc 2,000 lines/mm cross line grating replica is suitable for X-Y calibration. The replicas have well-defined trench type grooves, which makes it easy to determine the 500nm pitch. The 677-AFM Grating Replica is made of cellulose acetate. It replaces the previous #607-AFM Grating Replica with 463nm pitch. The 677-STM Grating Replica is a carbon replica with Au/Pd shadowing supported on a 400 square mesh, 3mm copper TEM grid which is mounted on a 12mm disc. It replaces the previous #607-STM Grating Replica with 463nm pitch. PELCO® Technical Notes, 2000 lines/mm Cross Line Grating Replica, Product No. 677-AFM (PDF 118KB) PELCO® Technical Notes, 2000 lines/mm Cross Line Grating Replica, Product No. 677-STM (PDF 115KB)
